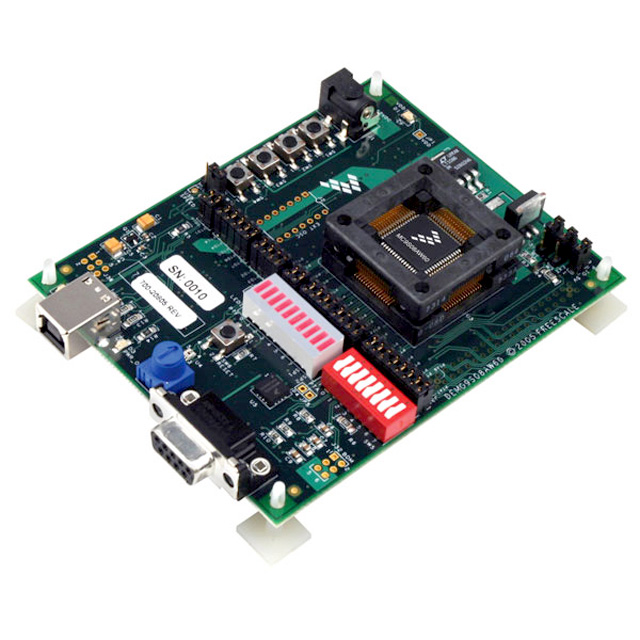

la carte d'évaluation

Caractéristiques de la carte MC9S08AW60:
  • MC9S08AW60 MCU
  • Socketed 64 pin QFP package
  • Power and communication through the integrated USB-BDM cable
  • External power jack for optional DC power supply (+7 to +12 VDC)
  • 40 Pin expansion connector
  • Four push-button user switches
  • Ten LED light bar with 8 connected to I/O port (2 user assignable)
  • Eight port rocker switch connected to I/O port
  • All I/O pins can be disconnected from demo board for alternate use
  • Master reset switch
  • Freescale MMA6260Q Accelerometer
  • On-board visible light sensor
  • Potentiometer connected to the ADC
  • On-board RS-232 serial port
  • 4.5" x 3.5" board size

MC9S08AW Features

  • 8-Bit HCS08 Central Processor Unit (CPU)
  • 40-MHz HCS08 CPU (central processor unit)
  • 20-MHz internal bus frequency
  • 16/32/60KB of on-chip in-circuit programmable FLASH memory with block protection and security options
  • 1/2/2KB of on-chip RAM Clock source options include crystal, resonator, external clock, or internally generated clock with precision NVM trimming
  •  System Protection
    • Optional computer operating properly (COP) reset
    • Low-voltage detection with reset or interrupt
    • Illegal opcode detection with reset
    • Illegal address detection with reset (some devices don´t have illegal addresses)
  • Power-Saving Modes Wait plus two stops
  • Peripherals
    • ADC - 16-channel, 10-bit analog-to-digital converter with automatic compare function
    • SCI - Two serial communications interface modules with optional 13-bit break
    • SPI - Serial peripheral interface module
    • IIC Inter-integrated circuit bus module to operate at up to 100 kbps with maximum bus loading; capable of higher baudrates with reduced loading
    • Timers - One 2-channel and one 6-channel 16-bit timer/pulse-width modulator
    • (TPM) module: Selectable input capture, output compare, and edge-aligned PWM capability on each channel. Each timer module may be configured for buffered, centered PWM (CPWM) on all channels
    • KBI - 8-pin keyboard interrupt module
  • Input/Output -
    • Up to 54 general-purpose input/output (I/O) pins
    • Software selectable pullups on ports when used as inputs
    • Software selectable slew rate control on ports when used as outputs
    • Software selectable drive strength on ports when used as outputs
    • Master reset pin and power-on reset (POR)
    • Internal pullup on RESET, IRQ, and BKGD/MS pins to reduce customer system cost
  • Packages -
    • 48-pin low-profile quad flat package (QFN)
    • 44-pin low-profile quad flat package (LQFP)
    • 64-pin quad flat package (QFP)
    • 64-pin low-profile quad flat package (LQFP)
The 9s08aw60 demo board can use Coldfire V1 32 bits MCU pins to pins compatible ( programmed with usbdm on J32 BDM connector )

Coldfire V1 Features

The MCF51AC family, comprised of pin-compatible 8-bit and 32-bit device duos, is the third family in the Flexis series. The Flexis series of controllers is the connection point on the Freescale Controller Continuum, where 8- and 32-bit compatibility becomes reality. The MCF51AC256128 device extends the low end of the 32-bit ColdFire controller family with up to 256 KB flash memory, a controller area network (CAN) module, a 16-bit FlexTimer module, 24-channel, 12-bit analog-to-digital converter (ADC) and delivers up to 25 MHz in bus frequency. The 32-bit MCF51AC256/128 is pin-, peripheral- and tool-compatible with the 8-bit S08AC128/96/60/48/32 devices. They share a common set of peripherals and development tools to deliver the ultimate in migration flexibility. Features
  • V1 ColdFire core with background debug module
  • Up to 256 KB of flash memory
  • Up to 32 KB of static RAM (SRAM)
  • Up to two analog comparators (ACMP)
  • ADC with up to 24 channels
  • CAN
  • Cyclic redundancy check (CRC)
  • Inter-integrated circuit (IIC)
  • Keyboard interrupt (KBI)
  • Multipurpose clock generator (MCG)
  • Rapid general-purpose inputoutput (RGPIO)
  • Two serial communications interfaces (SCI)
  • Up to two serial peripheral interfaces (SPI)
  • Two flexible timer modules (FTM)
  • Timer pulse-width modulator (TPM)
  • The MCF51AC256 is included in Freescale’s product longevity program, with assured supply for a minimum of 10 years after launch
